Panel Glass Manufacturing Process: Premium Craftsmanship & Precision Production

Panel glass is the core protective and display component for electronic devices, home appliances, automotive displays, and smart touch screens. The surface flatness, light transmittance, hardness, and dimensional accuracy of your panel glass directly determine the product’s visual experience, touch sensitivity, and service life. Different from ordinary architectural glass, industrial panel glass requires ultra-high precision, stable physical properties, and flawless surface quality. This article walks you through the full manufacturing process of high-quality custom panel glass, revealing the strict craftsmanship behind every piece of premium cover panel glass.

1. Raw Material Selection & Precision Batching

The quality of panel glass fundamentally depends on high-purity raw materials. We adopt high-grade silica sand as the core raw material, matched with refined inorganic additives such as alumina, soda ash, and limestone. All materials are strictly screened for purity, with impurity content controlled at an ultra-low level to avoid glass bubbles, streaks, and color difference defects.

According to different product positioning (cover glass, display glass, touch panel glass), we implement precise proportional batching. The fully automated batching system accurately weighs each component, mixes the materials evenly, and eliminates formula deviations. This step ensures the final industrial panel glass has stable hardness, excellent light transmittance, and strong pressure resistance, laying a solid foundation for subsequent processing.

2. High-Temperature Melting & Homogenization

The uniformly mixed raw materials are sent to a high-temperature energy-saving melting furnace, adopting electric heating auxiliary process instead of traditional single gas heating, which achieves more uniform temperature control and lower energy consumption. The furnace temperature is stably maintained at 1500–1600°C, completely melting the solid raw materials into a smooth, uniform glass liquid.

During the melting process, we conduct continuous defoaming and homogenization treatment to eliminate tiny bubbles and material streaks inside the glass liquid. The fully fluid glass liquid maintains consistent viscosity and composition throughout, ensuring no internal structural differences in the formed glass panel and avoiding cracking or optical distortion caused by uneven materials.

3. Professional Forming: Float & Fusion Process

We adopt two mainstream advanced forming processes — float process and fusion drop process — to meet different thickness and precision requirements of panel glass, covering thin ultra-thin panels and medium-thick protective panels.

Float Glass Process: The high-temperature glass liquid flows steadily onto the mirror surface of molten tin. Relying on the flatness and tension of molten tin, the glass liquid automatically spreads and forms a flat, uniform glass ribbon. The temperature is gradually cooled from 1100°C to 600°C, forming a preliminarily shaped glass sheet with excellent flatness. This process is suitable for large-size, medium-thick industrial panel glass with high dimensional stability.

Fusion Drop Process: The glass liquid flows into a precision V-shaped isopipe, overflows evenly from the top edges on both sides, and merges into a single thin glass sheet through free fall. This process requires no post-polishing, with ultra-smooth double-sided surfaces, and is mainly used for ultra-thin high-precision panels such as mobile phone screens and wearable device touch panel glass.

4. Precision Annealing & Stress Elimination

Internal stress is the main cause of spontaneous cracking and edge chipping of panel glass. The initially formed glass ribbon will be sent to a professional annealing kiln for slow cooling and stress relief treatment. We adopt segmented constant-temperature cooling technology, with precise temperature control in each temperature zone, which slowly releases the internal thermal stress generated during high-temperature forming.

After strict annealing treatment, the glass panel has uniform internal stress distribution, effectively improving its toughness and impact resistance. It avoids deformation, cracking, and damage during subsequent cutting, grinding, and use, greatly extending the service life of your custom panel glass.

5. CNC Precision Cutting & Edge Polishing

The annealed original glass sheet is transported to the automated processing line for customized cutting. According to customer drawings and size specifications, the CNC intelligent cutting system uses diamond cutter wheels for precise scoring and splitting, with a dimensional tolerance controlled within ±0.05mm, realizing high-precision fixed-size cutting of different shapes such as square, round, and special-shaped panel glass.

The cut glass edges are sharp and prone to chipping, so we carry out full-process edge polishing treatment, including rough grinding, fine grinding, and mirror polishing. The edge is processed into smooth right angles, rounded corners, or chamfers as required, eliminating edge burrs and micro-cracks. This not only improves the safety of product assembly but also enhances the overall texture of the cover panel glass.

6. Surface Strengthening & Functional Coating

To adapt to the use scenarios of electronic panels and smart devices, we conduct targeted strengthening and functional coating treatment on the glass surface. The mainstream chemical tempering process is adopted: the glass is immersed in high-temperature potassium nitrate solution, and ion exchange is used to form a dense compressive stress layer on the surface, which significantly improves the glass hardness, scratch resistance, and drop resistance of tempered panel glass.

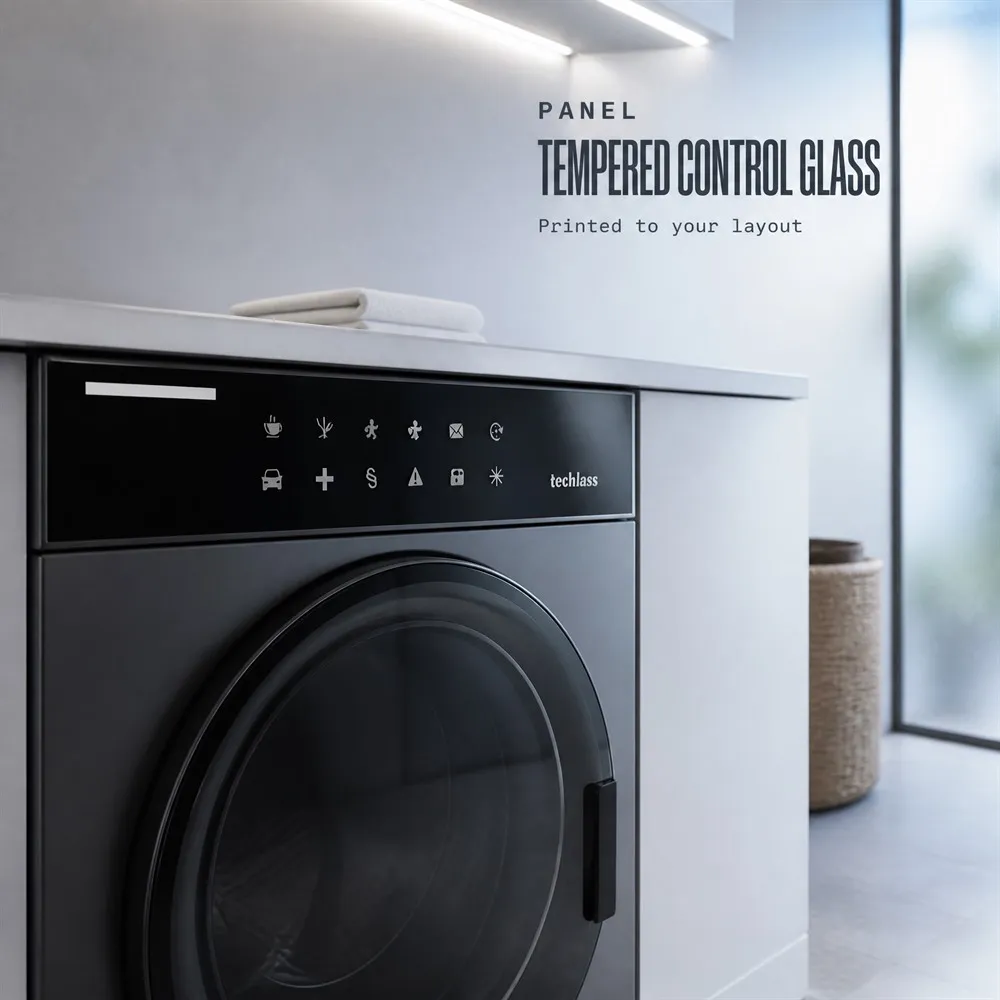

On this basis, we can customize various functional coatings according to customer needs: anti-glare (AG) coating reduces screen reflection and improves outdoor viewing clarity; anti-fingerprint (AF) coating keeps the glass surface clean and sensitive to touch; anti-reflection (AR) coating improves light transmittance and enhances display color reproduction; high-temperature resistant and anti-corrosion coatings are suitable for home appliance and industrial equipment panel glass.

7. Strict Quality Inspection & Precision Packaging

Every batch of panel glass will undergo comprehensive multi-dimensional quality inspection before leaving the factory. Our inspection items include surface flatness, light transmittance, hardness, dimensional accuracy, surface defect detection (bubbles, scratches, spots, streaks), and stress uniformity test. We adopt automated optical inspection (AOI) equipment combined with manual fine inspection to eliminate all defective products.

Qualified products are cleaned and dust-free dried in a constant-temperature and dust-free workshop, then packaged with anti-collision foam, electrostatic bags, and customized cartons. The whole process avoids secondary scratches, dust pollution, and extrusion damage, ensuring that customers receive intact high-quality custom panel glass products.

Why Choose Our Panel Glass?

We focus on the R&D and customized production of high-precision panel glass, adhering to refined craftsmanship in every process from raw material selection to finished product delivery. Our industrial panel glass and cover panel glass feature ultra-high flatness, high light transmittance, strong wear resistance, and stable performance, which can perfectly match smart phones, tablet computers, vehicle-mounted displays, smart home appliances, industrial control equipment, and other scenarios.

We support personalized customization of different sizes, thicknesses, shapes, and functional coatings, with strict production cycle control and reliable quality assurance. Whether you need standard conventional tempered panel glass or special custom touch panel glass, we can provide you with cost-effective professional solutions.
