Factory Customized Low-E Double-Layer Insulated Tempered Glass Transparent Building Curtain Walls Greenhouse Solar Exterior

Product Description

Feature	Specific Performance
Ultra-high Strength	Surface compressive stress layer increases impact strength to 4-8 times that of ordinary glass, and bending strength is enhanced by 3-5 times.
Safety and Injury Prevention	After shattering, it forms dull-edged granular fragments (not sharp shards), reducing the risk of injury by 70%.
Excellent Temperature Resistance	Can withstand sudden temperature changes from -30℃ to 600℃ (ordinary glass can only handle 70-100℃), making it less likely to shatter under rapid cooling or heating.
Enhanced Elasticity	Higher elastic modulus allows for better recovery after deformation under force.
Good Thermal Stability	Can endure temperature differences of 150-300℃, suitable for environments with alternating hot and cold conditions (such as shower rooms and kitchens

Inherent Defects
- Risk of Spontaneous Breakage
- There is an approximate 0.3% spontaneous breakage rate (caused by the expansion of nickel sulfide impurities), which can be mitigated through the use of laminated glass processes (with PVB interlayers).

- No Secondary Processing
- Tempered glass cannot be cut or drilled after processing. Custom shapes must be specified in advance.

- Fragile Edges and Corners
- The edges and corners have lower impact resistance compared to the center and are more prone to shattering upon collision.

Application Scenarios
- Building Facades/Windows: Laminated tempered glass is preferred for its combination of strength and safety against falling debris.
- High-Temperature Appliances (e.g., ovens, induction cooktops): Microcrystalline glass panels are recommended for their ability to withstand thermal shock up to 700°C.
- Home Furniture (e.g., coffee tables, partitions): Sharp impacts on edges and corners should be avoided to reduce the risk of spontaneous breakage.

Company Strengths
1. Industry Experience: With 15 years of experience in tempered glass manufacturing, our digital production lines ensure efficiency and quality, offering a wide range of customized services.
2. Product Customization: Using high-quality glass substrates, we can customize tempered glass products with high transparency, strength, and durability through advanced cutting, edging, and strengthening processes.
3. After-Sales Service: We prioritize customer needs and satisfaction, providing personalized services. Defective or damaged products are guaranteed for replacement or refund.
4. Technical R&D: Our strong technical team has independent R&D capabilities. By introducing advanced international equipment, we continuously improve product performance to meet diverse market demands.
5. Price Advantage: Leveraging a high-quality supply chain and advanced process technology, we reduce production costs. Low minimum order quantities help lower customers' purchasing costs.

Factory Customized Low-E Double-Layer Insulated Tempered Glass Transparent Building Curtain Walls Greenhouse Solar Exterior manufacture

Product Description

Insulating glass, also called insulated glass, are sealed units. It refers to two or more lites of glass glazed along the edges
with spacers. The composed glass could be monolithic, or laminated glass, with or without coatings ( low e coating as typical).There are types of spacers available, such as stainless steel, aluminum, warm edge spacers in various colors. The space between the glass is sometimes filled with noble gas, such as argon or krypton. 90% filled, which is more helpful to reduce energy consuming. The most common architectural insulating glass unit configuration is 1/4" glass, 1/2" air space and 1/4" glass.

We always call it double glazed glass units, triple glazed glass units for its processing way, or sometimes it is called as double pane glass, or triple pane glass panels.

Commonly referred to as an “IGU,” insulating glass is the most effective way to reduce mair-to-air heat transfer through the glazing. When used in conjunction with low-E or reflective glass coatings, IGUs become an effective means to save energy.

Factory Customized Low-E Double-Layer Insulated Tempered Glass Transparent Building Curtain Walls Greenhouse Solar Exterior details

Factory Customized Low-E Double-Layer Insulated Tempered Glass Transparent Building Curtain Walls Greenhouse Solar Exterior supplier

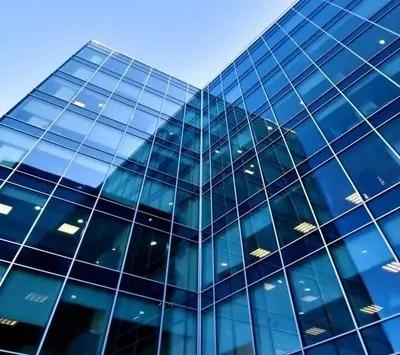

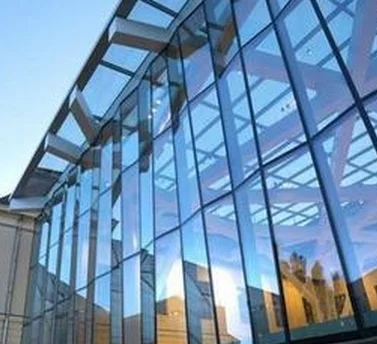

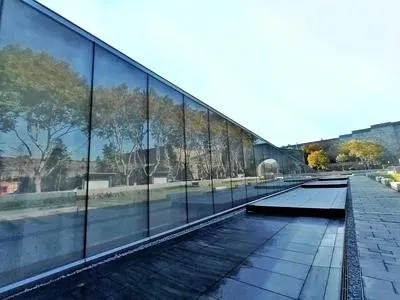

Project Reference

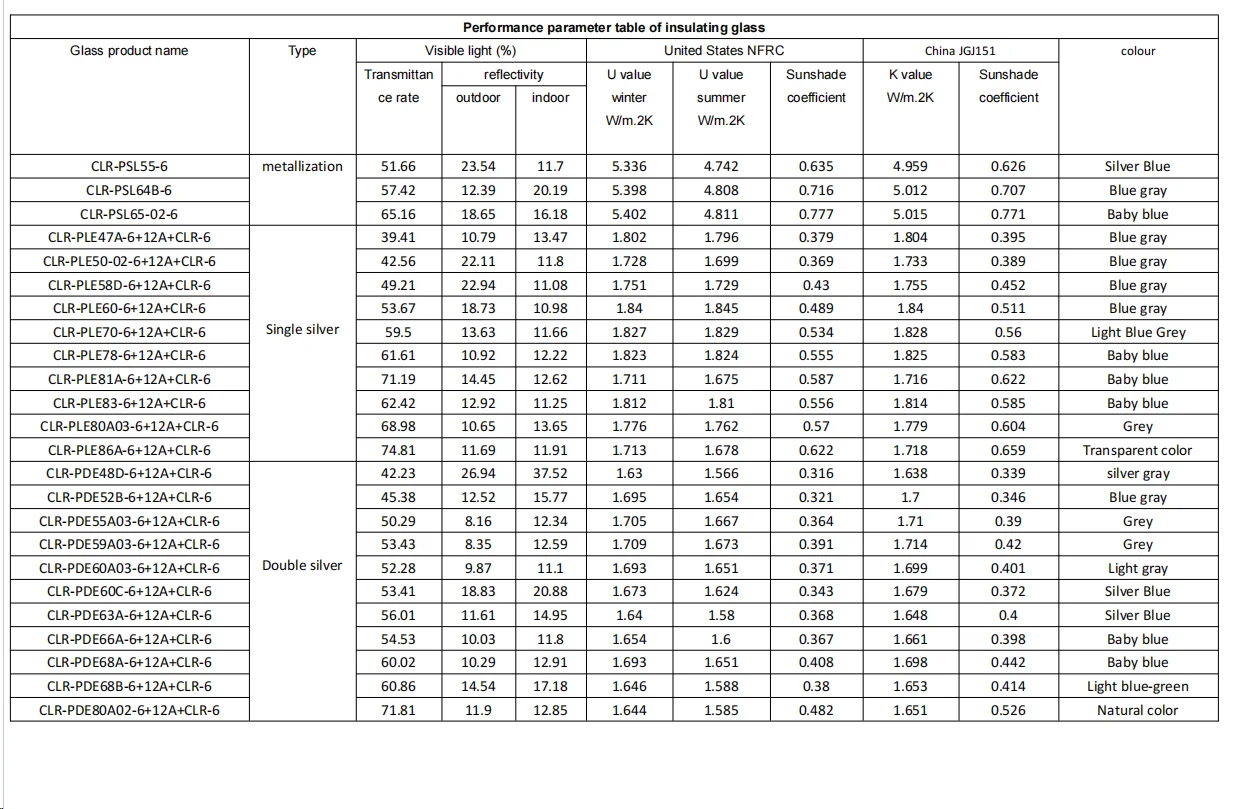

Specification

Glass Type	Insulating Glass
Double Glass Thickness	3mm+6A+3mm,5mm+6A+5mm, 6mm+9A+6mm, 6mm+12A+6mm, 6mm+16A+6mm,etc. 3mm+6Ar+3mm,5mm+6Ar+5mm, 6mm+9Ar+6mm, 6mm+12Ar+6mm, 6mm+16Ar+6mm,etc.
Glass Combination Type	Tempered Insulating glass, Laminated Insulating Glass, Low-e Insulating Glass, Frosted Insulating Glass, Silkscreen Printing Insulating Glass, Digital Printed Insulating Glass, Chrome Privacy Insulated Glass,etc.
Low E Type	Double silver low e, triple silver low e, online hard coated low e: Vitro Solarban 60, Solarban 70, Guardian SN54 SN68 SN62/27, Saint Gobain low e and so on
Spacer Options	Stainless steel, aluminum, TGI( warm spacer) , super spacer
Spacer Thickness	6mm, 9mm, 12mm, 16mm, 19mm(1/4'',11/32'',1/2'',9/16'',19/32'',5/8'')etc
Gas Filling	Air, Argon, Krypton,etc
Glass Color Option	Clear, Low Iron, Super White, Super Clear, Extra White, Starphire, Optiwhite, Euro Grey, Dark Grey, Crystal Grey, Brown, Bronze, Ocean Blue, Ford Blue, Dark Blue,etc.
Edge Processing	Flat Edge, Seamed Edge, Polished Edge, Bevelled edge, Flat Polished Edge, Round Edge
Irregular Shape	Rectangular, Round, Oval, Trapezoid, Parallel, etc. All edges can be bright polished.
Hole & Notch Available	Countersunk holes, round holes, bell-mouth holes, simple notch, mickey ears cutouts, etc. The edge of hole and notch can be polished by CNC

About us.

Shanghai Wuyong Glass, located in Songjiang District, Shanghai, was established in 2013. It is one of the production bases in Shanghai specializing in the production of special safety energy-saving glass, building energy-saving doors and windows, curtain walls, and solar photovoltaic systems.

The factory currently covers an area of over 10000 square meters and has more than 80 employees, including over 20 senior personnel in the construction industry, as well as 150 cooperative franchisees. Over the past two decades of development and exploration, Shanghai Wuyong Glass Factory has adhered to the spirit of dedication, responsibility,and striving for integrity in serving its customers.

We understand that today's service and quality will be tomorrow's customers and reputation.

Factory Customized Low-E Double-Layer Insulated Tempered Glass Transparent Building Curtain Walls Greenhouse Solar Exterior factory

FAQ

Q: Can I received free sample?
A: Sure, we welcome sample to be tested and checked quality.

Q: Can I mix different type of glass in container?
A: Yes, we support different size or thickness of processing glass.

Q: What's the production time?
A: Generally need 7-15 business days to produce, if you need glass more faster, we can also provide urgently order service.

Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production line, and discussing orders in our office.

Packing

We always pack the tempered glass in strong export plywood crates, and load them safety in the container with metal belt, to make sure no damage during transportation. If have any damage, we will replace or refund with the fastest way.
